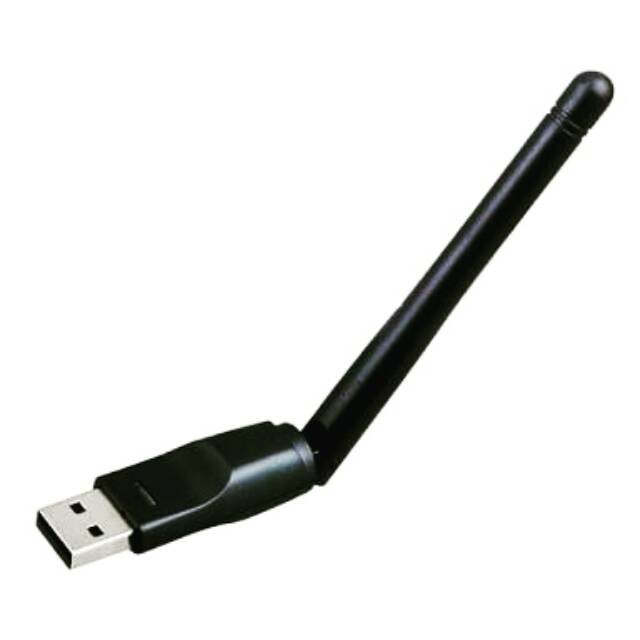

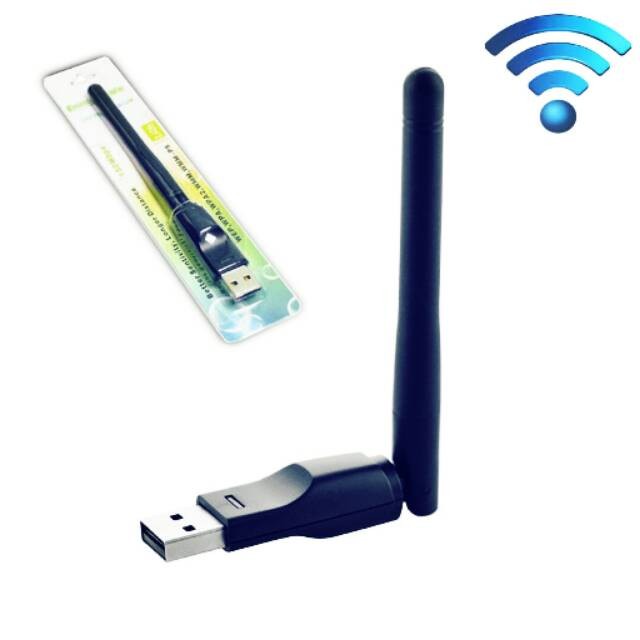

WIFI USB DONGLE SET TOP BOX / STB MATRIX

WIFI USB DONGLE SET TOP BOX / STB MATRIX Udah Testing Suport di Set Top Box Matrix, Tanaka, LUBY. WELHOME DLL USB WIFI adapter spec...

WIFI USB DONGLE SET TOP BOX / STB MATRIX

Udah Testing Suport di Set Top Box Matrix, Tanaka, LUBY. WELHOME DLL USB WIFI adapter specifications:
Chipset: MT7601
MERK :NOISE
Wireless Standards: 802.11b/g/n
Frequency Band:2.4GHz ISM (Industrial Scientific Medical) Band
Peak Throughput:150Mbps
Channel:1--14 channels (Universal Domain Selection)
Data Security 16/128-bit WEP Encryption WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES
Support Operating System: Windows 2000, XP, Vista, Win7, Win10
Host Interface:High speed USB2.0/1.1 Interface
Antenna Gain:2dBi
Operating Temperature: 0oC - 40oC
Storage Temperature: -20oC - 75oC
Operating Humidity: 10% - 90% RH, (non condensing)
Storage Humidity: 5% - 95% RH, (noncondensing)
150MBPS USB WIFI ADAPTER

NO SUPPORT : Skybox H1

SUPPORT RECEIVER
Matrix, Evinix, T2 dll

SPESIFIKASI

Host Interface USB 2.0/1.1/ Type A
Standart IEEE802.11b/g dan 802.11n(1T1R k, 150mbps)
Antena 2DBI/4DBI

FITUR
802.11b 1, 2, 5.5, 11Mbps
802.11g 6, 9,12,18, 24, 36, 48, 54Mbps
802.11n (20MHz)MCS0-7, Support up to 72Mbps
(40MHz)MCS0-7, Support up to 150Mbps OFDM
Peak rate 150Mbps
Peak throughtput 90Mbps Security support for 64/128 WEP, WPA, WPA2, TKIP, AES Operates in 2.4GHz frequency band Power Management
